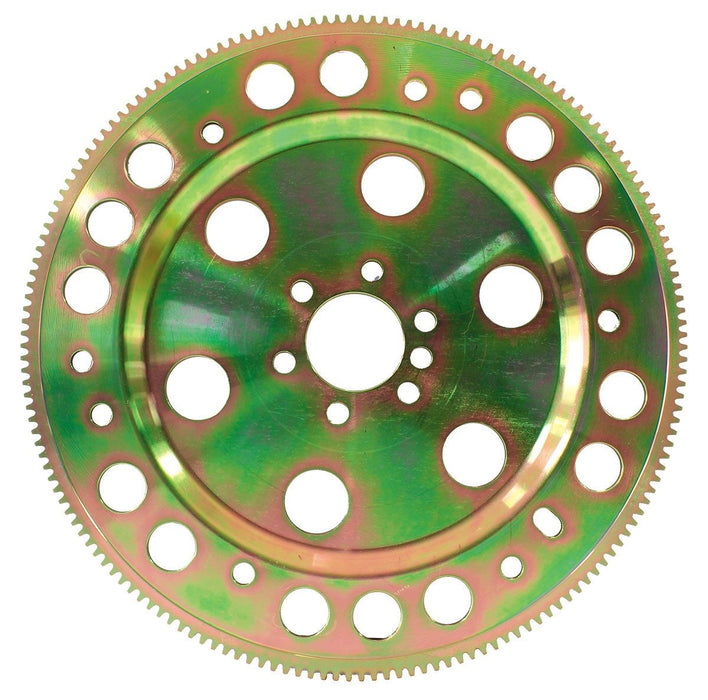

Ford 289-351 Windsor & 351 Cleveland 164 Tooth Internal Balance Billet Flexplate - SFI Approved AF88-302NSFI
Aeroflow Ford 289-351 Windsor & 351 Cleveland 164 Tooth Internal Balance Billet Flexplate - SFI Approved
Suits 10.5", 10.75" 11.38" & 11.40" Converter Bolt Circles
The Aeroflow Performance billet flexplates are the superior choice for quality and precision. The light weight 1-piece design is stronger and more durable than any 2-piece style of flexplate. Machined from 4340 round bar with precise tolerances. Each flexplate features chamfered gear teeth for better engagement with the least amount of run out to provide the best longevity on the market. All of our billet flexplates are certified to SFI 29.2 and available for many different models. CNC machined from 4340 round bar and heat treated to HRC45-55.Ć
SFI certification sticker 29.1 approved balanced and checked for run out.
164 Tooth Flexplate.
Internal Balance.
Converter Pattern included on flexplate:
3 x 10.75"
3 x 11.37"
4 x 10.50"
4 x 11.50"
This flexplate has a 16mm total offset from face to ring gear.
When using on a Ford 351 Cleveland check the converter has enough converter pullout. If the pullout is incorrect it will require extra sandwich plates to be stacked together or machine down the converter pads. The offset difference is 4mm from Ford Windsor 302/351 (16mm) to Ford Cleveland 351 (20mm)Ć
Part NumberĀ
AF88-302NSFI
