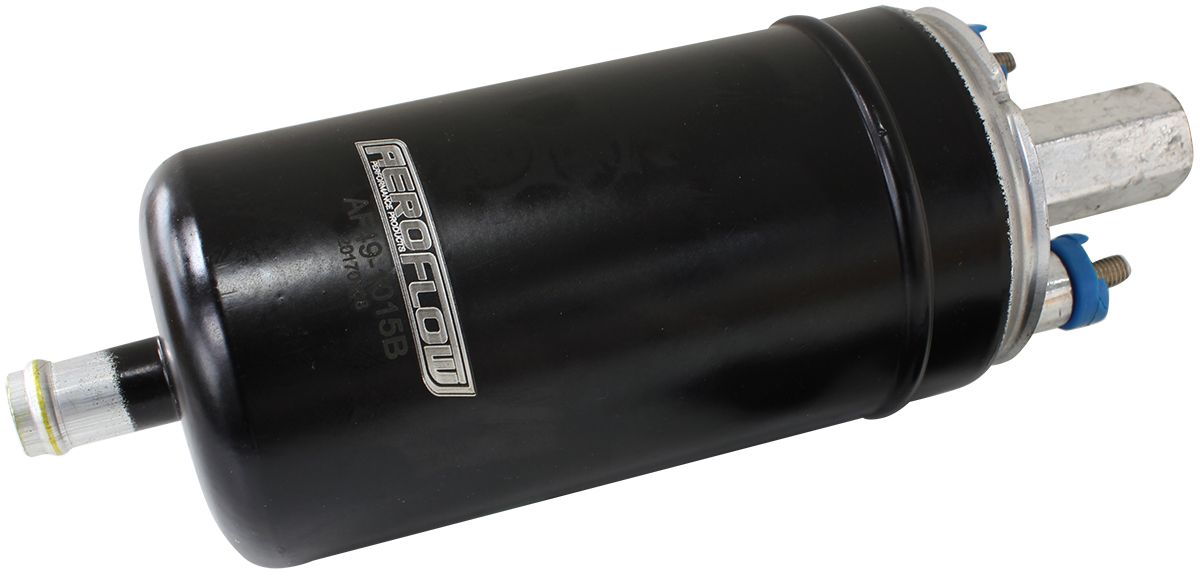

EFI IN TANK / EXTERNAL PUMP 675HP BOSCH 984 EQUIVALENT AF49-1015B

EFI Electric In-tank/External Fuel Pump 675 HP
1/2" Barb Inlet, M12 x 1.5mm Outlet, similar to Bosch 984

Universal 60mm External or In-Tank EFi Fuel Pump.

This Aeroflow Performance fuel pump delivers outstanding performance and durability and is one of the most popular pumps for performance and racing applications. This fuel pump is almost identical to AF49-1014 but features a 12.7mm (1/2") inlet. The pump is very versatile, allowing you to mount your pump externally as an in-line pump or internally as an in-tank pump. While producing 300lph (79GPH) of fuel flow and operating at 72.5psi, with this pump you will be able to support 675hp. It features a check valve already screwed into the outlet, if you leave it in you will need to run a banjo fitting as the thread is tapered. It is common for people to remove this check valve and screw an adapt or fitting straight in the outlet. If you do this you will need to put an after market check valve in-line to keep fuel pressure in your lines.

Compatible with Unleaded, E85 and Methanol. (When running Alcohol fuels the service life will be reduced and filter maintenance must be increased).

Body Length: 181mm (7-1/8")

Body Diameter: 60mm (2-23/64")

Outlet thread: M12 x 1.50mm

Inlet Thread: M14 x 1.50mm

Electrical Terminals: Positive M6, Negative M5

Part Number

AF49-1015B
