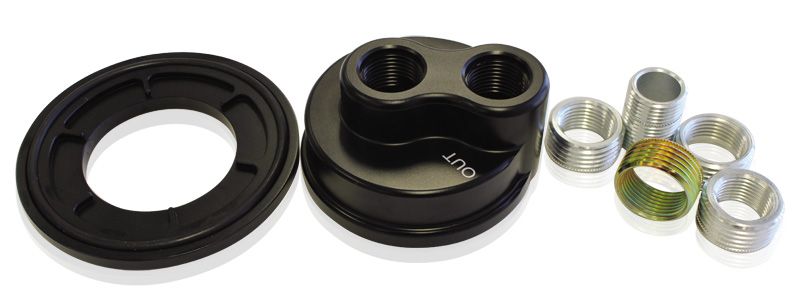

BILLET REMOTE BLOCK ADAPTER. SUIT 2-1/2- 3-1/4 FILTER. UNI
Billet Oil Filter Block Adapter
Universal fitment, -8 ORB ports, Black anodised finish
To help move your oil filter to a new location or toadd a new external oil cooler to the engine, Aeroflow Performance have this billet remote block adapter. This spin on adapter converts the oil filter landing on the engine block to an oil passagefor use with a remote oil cooler and/or a remote oil filter. The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. Featuring two -8ORB ports that are labelled inlet and outlet allow you to run custom plumbing braided orrubber hoses. Included in thisremote block adapters are various universal thread adapters to suit a wide variety of engines.
Thisincludes the following thread adapters (Internal Thread for all 3/4ā-16 internal thread):
3/4ā-16 thread insert (Gold)
13/16ā-16 thread insert (Blue)
M18 x 1.5mmthread insert (Silver)
M20 x 1.5mm thread insert (Black)
M22 x 1.5mm thread insert (Green)
Remote Block Adapter Dimensions:
Overall Diameter - 71.60mm
Overall height - 39mm
Oil Filter landing Dimensions:
SealInternal Diameter - 62mm
Seal Outside Diameter - 87mm
Threadinserts (3/4ā-16 internal thread)
3/4ā-16 thread insert (Gold)
13/16ā-16 thread insert (Blue)
M18 x 1.5mmthread insert (Silver)
M20 x 1.5mm thread insert (Black)
M22 x 1.5mm thread insert (Green)
AF64-2076
