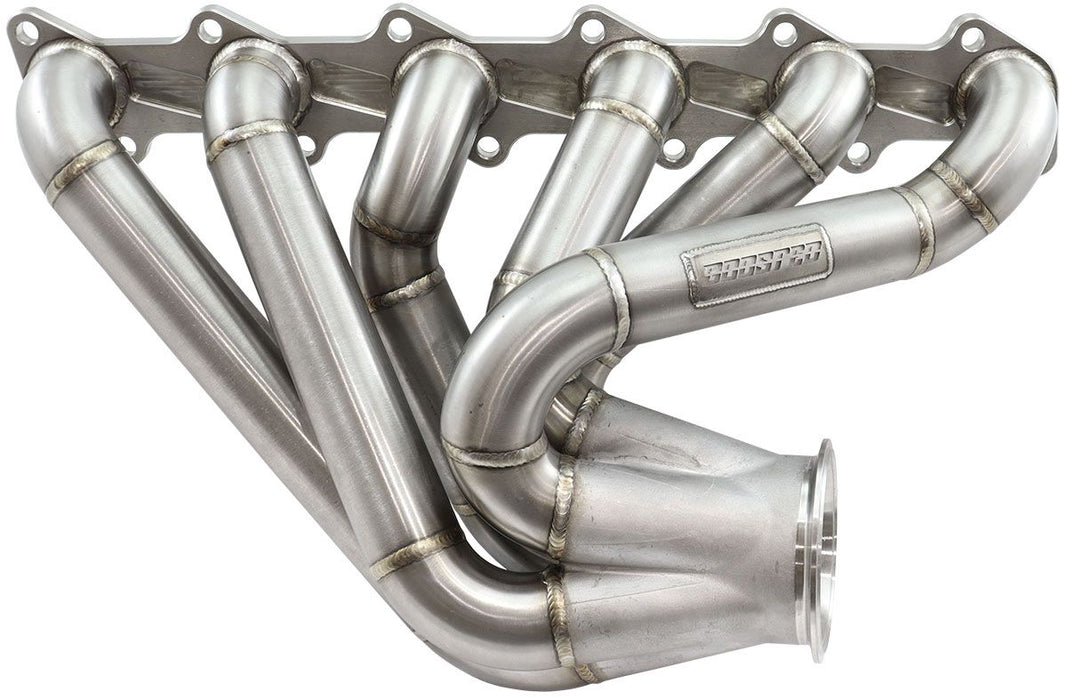

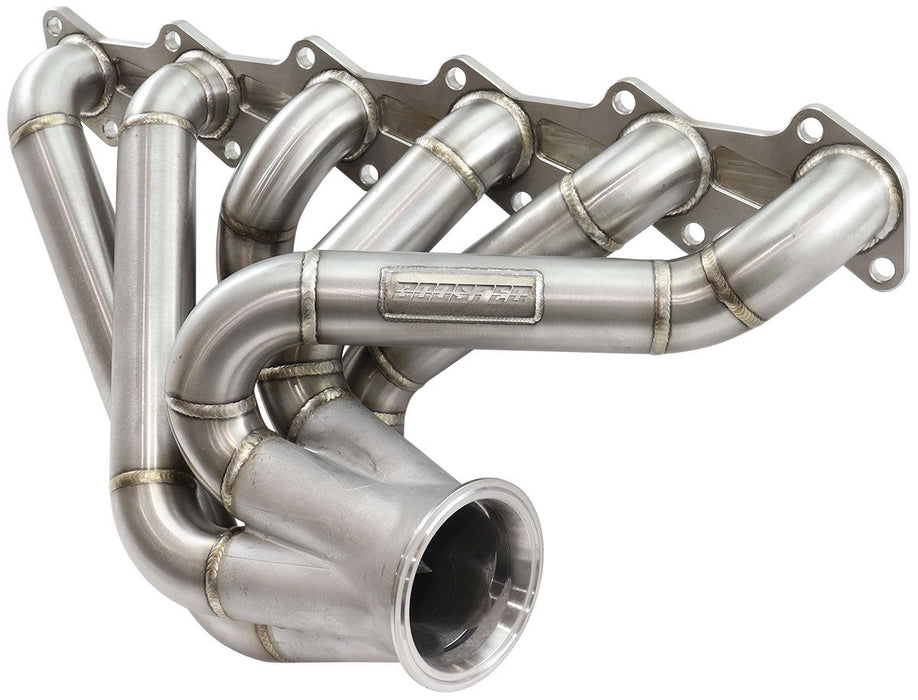

AF8490-3000- Barra V-Band Pro Mod Stainless Steel Turbo Manifold

Aeroflow Ford Barra V-Band Pro Mod Stainless Steel Turbo Manifold
Pro Mod Forward Mount with 3.5" V-Band, No Wastegate Port

Aeroflow Performance stainless steel pro mod turbo manifolds are a series of pipes that collect exiting exhaust gases which can be channelled into our merge collector which can be matched to our largest Boosted range of turbochargers. Our merge collector design allows all pipes to enter at the exact same angle, and merge together at a point in the middle, pointing straight into the turbine. No pipes enter across each other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from our turbo manifold.

Aeroflow turbo manifolds are finished to the highest of standards, constructed from thick wall 3mm stainless steel with CNC machined header and turbo flanges. Each flange is milled after welding to ensure precise surface finish. This Pro Mod style manifold is designed with 3-1/2” v-band at the merge collector. This allows a variety of options when it comes to custom configurations and applications. Both V-band and T6 turn up options are sold separately (AF8490-3001 and AF8480-3000)

Model - Ford Falcon XR6 BA, BF, FG, FG-X with Turbo Barra Engine Pro Mod thick wall stainless steel turbo manifold.
Turbo Collector Flange - 3.5" V-Band (AF92-3500SS).
Mounting Location - Pro Mod Forward Mount.
Turbocharger Style - GT50/GT55 style (Boosted 8077 to Boosted 106112).
Wastegate Flange - No Wastegate Flange.
Tube Runner Size - 1-5/8" (41mm) Actual I.D.

AF8490-3000
