AF8300-2000 - AEROFLOW 4 INTO 1 TURBO MERGE COLLECTOR

AF8300-2000 - AEROFLOW 4 INTO 1 TURBO MERGE COLLECTOR

Sold out
$169.00 - $169.00
$169.00
$169.00 - $169.00
$169.00

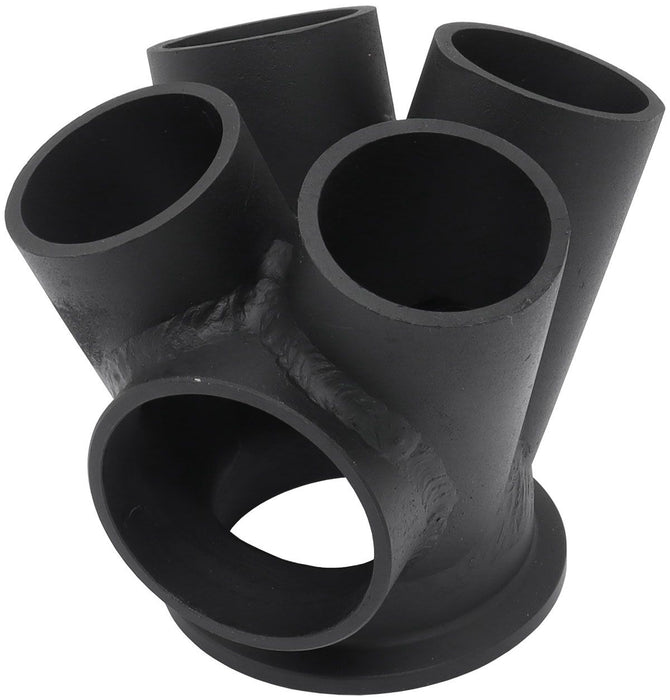

Aeroflow 4 into 1 Round Turbo Merge Collector with 1-1/2" Tube Size, V-Band Flange
50mm Wastegate Hole, Fabricated, Suits Boosted 4849 to 6862 V-Band Flange

All fabricators know that more often than not the most time-consuming aspect of fabricating a turbo manifold is making the merge collector! The Aeroflow Performance turbo merge collector range will save you hours of labor when fabricating a manifold and no more wasting material trying to figure out optimal angles. These fabricated merge collectors are a crucial point when it comes to an even flowing exhaust manifold. Available in either 6 into 1 or 4 into 1 configuration with multiple flange options to choose from.

Style: 4 into 1
Design: Round Shape Collector
Tube OD Size: 1-1/2" (47.90mm)
Tube ID Size: 1-3/8" (41.70mm)
Flange: V-Band (AF8080-1016)
Wastegate Hole OD: 2-1/8" (53.90mm)
Wastegate Hole ID: 1-7/8" (47.75mm)
Suits: Boosted 4849 up to 6862 (GT30/G30/G35)

AF8300-2000
