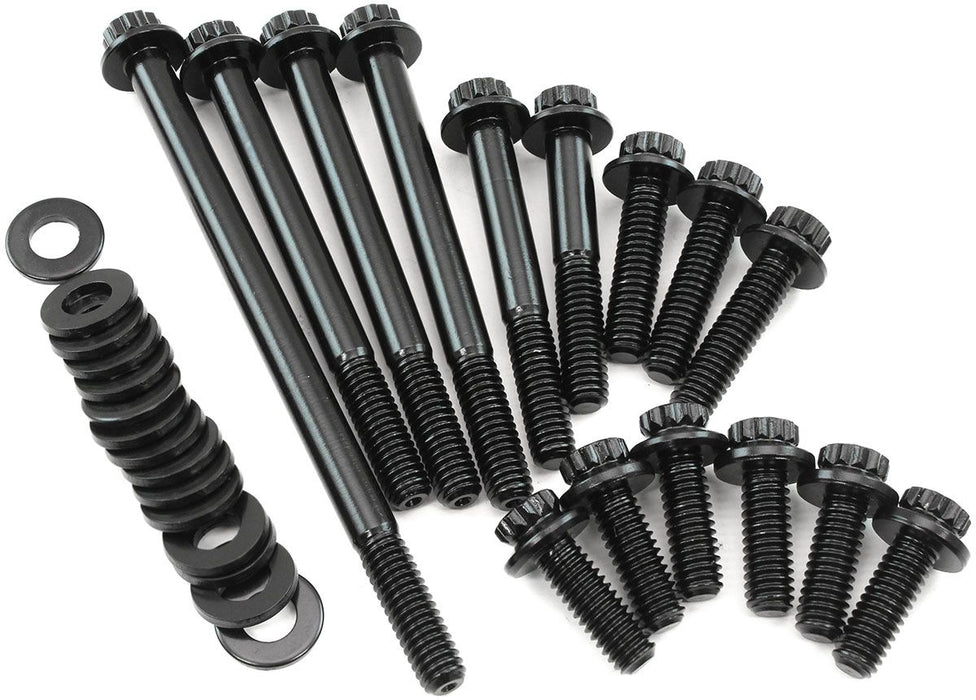

AF37-1625 - AEROFLOW TIMING COVER & WATER PUMP BOLT KIT FITS SB FORD WINDSOR

Aeroflow Small Block Ford Windsor Timing Cover & Water Pump Bolt Kit - Black Finish
12 Point Head and 8740 Grade Material

When installing a new timing cover and water pump it is recommended to upgrade your mounting bolts. These Aeroflow timing cover and water pump bolts are made from chrome moly 8740 for strength. They are coated in a black oxide finish for protection and long-lasting durability. Each bolt features a compact 12-point head which is ideal for use where space is minimal on most aftermarket water pumps and timing covers compared to the factory bolts with a larger head. Each set includes thick flat washers for optimum clamping pressures to ensure a sure seal.

Kit Contains

6 Extra Short Bolts
Under Head Length - 22.25mm
Head Diameter - 15.90mm
Thread - 5/16-18"
Spanner Size 10mm

3 Short Bolts
Under Head Length - 31.85mm
Head Diameter - 15.80mm
Thread - 5/16-18"
Spanner Size 10mm

1 Mid Bolt
Under Head Length - 51mm
Head Diameter - 15.85mm
Thread - 5/16-18"
Spanner Size 10mm

1 Mid Bolt
Under Head Length - 63.95mm
Head Diameter - 15.90mm
Thread - 5/16-18"
Spanner Size 10mm

3 Long Bolts
Under Head Length - 89.20mm
Head Diameter - 15.80mm
Thread - 5/16-18"
Spanner Size 10mm

1 Extra Long Bolt
Under Head Length - 127.50mm
Head Diameter - 15.80mm
Thread - 5/16-18"
Spanner Size 10mm

15 Washers
Outside Diameter - 16.65mm
Inside Diameter - 8.15mm
Thickness - 2mm

AF37-1625
