Aeroflow Billet Remote Oil Filter Head -12 ORB Top Entry, Black anodized finish, accepts filter with 13/16"-16 thread

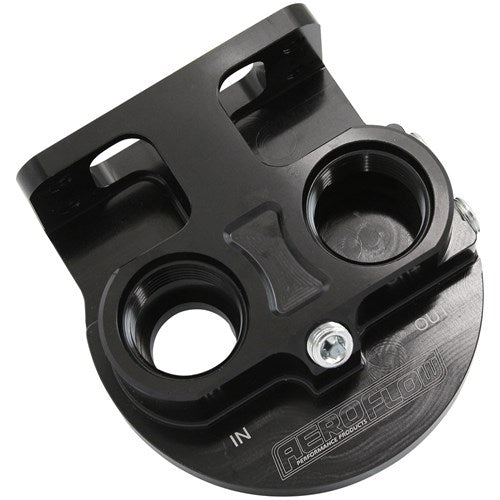

Aeroflow Billet Remote Oil Filter Head
-12 ORB Top Entry, Black anodized finish, accepts filter with 13/16"-16 thread

Move your oil filter to new location with Aeroflow Performance universal Billet Remote Oil Filter head. This is great for mounting an engine oil filter away from your engine, to make oil filter changes easier or where space is limited in the engine bay. Two labelled inlet and outlet -12 ORB ports are provided for plumbing the engine oil to and from the oil filter remote mount. The main body is made from billet 6061 aluminium, then anodized black for great looks and corrosion resistance. Integrated one piece bracket which can be used to make installation easier in various universal applications. Featuring 3 x 1/8” NPT female ports for various auxiliary accessories such as turbo feed, sensors and more.

This product has a 13/16”-16 filter thread insert supplied with kit.

Overall Diameter: 97.8mm

Body Height: 34.50mm

Centre to Centre -12ORB Ports: 48.30mm

Centre to Centre M6 x 1.00mm Mounting Holes: 63.50mm

Oil filters designed to work with this product are either:

AF2296-2002 (RYCO Z40) small oil filter.

AF2296-3002 (RYCO Z24) large oil filter.

Note: Other oil filters may be used if the sealing O-ring on the filters provided above have the same inner and outer dimensions to allow the oil filter to seal.

AF64-2275
