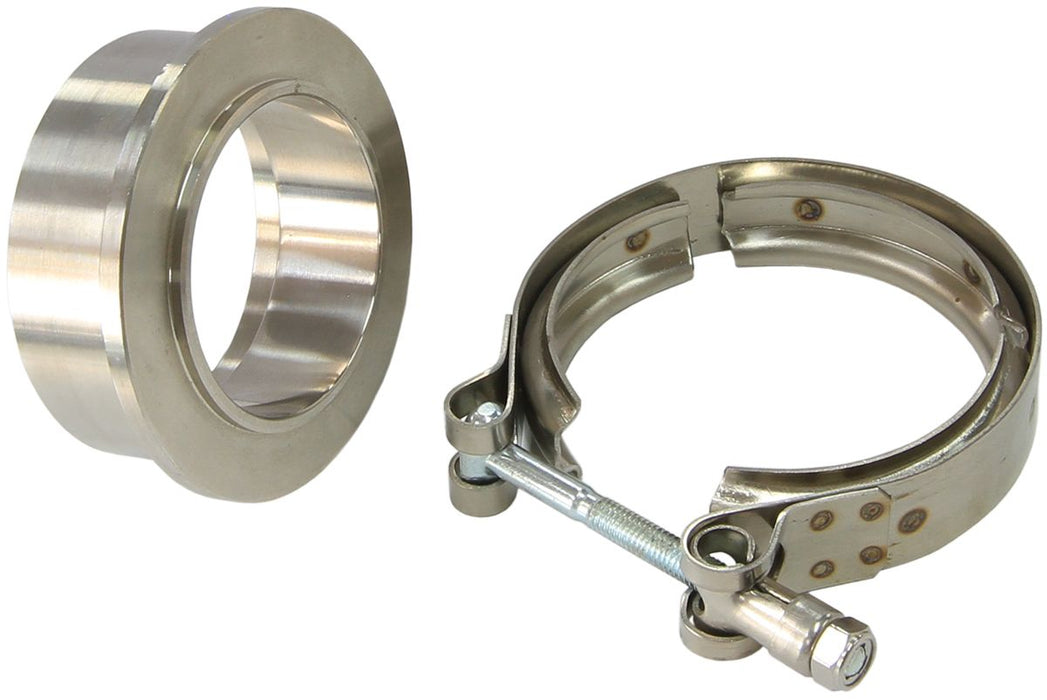

1.92 304 SS BOOSTED VBAND KITSUITS BOOSTED TURBOS GT30/GT35 AF8080-1010

Boosted Turbine Inlet 3" O.D Stainless Steel V-Band Kit
Suit Boosted 6662 Dual V-Band S/S Turbochargers

These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.

Note: Moly grease all threads before installation and removal.

Material is 304 Stainless Steel.

Suits Boosted Turbocharger Turbine Inlet Flange.

Replacement V-band clamp is AF8080-3007.

AF8080-1010 Aeroflow Performance V-Band Suits Boosted Turbos below:

• AF8005-3020 / AF8005-3020BLK

Suits Boosted Rear Housings below :

AF8050-1000

Measurements of V-Band flange:

- V-Band Weld on Ferrule Inside Diameter - 49mm (1-59/64").

- V-Band Weld on Ferrule Outside Diameter - 76.3mm (3").

- V-Band Weld on Ferrule Lip Outside Diameter - 53.70mm(2-3/32").

- Suits Exhaust Tube Inside Diameter - 57.15mm (2-1/4").

- Suits Exhaust Tube Outside Diameter - 67mm (2-5/8").

Part Number

AF8080-1010
